Furnace Installation Cost in Carlsbad: 2026 Pricing Guide

If you're replacing a furnace in Carlsbad in 2026, most gas installs without big duct changes fall between $4,500 and $10,500. The final number usually comes down to three things: furnace type, home size, and job scope.

Here’s the short version:

• Standard gas furnaces are often the lowest-cost gas option
• High-efficiency gas furnaces cost more because they need PVC venting and condensate drainage
• Electric furnaces can cost less to install, but they’re not the right fit for every home
• Permits, HERS testing, duct sealing, attic access, and thermostat upgrades can all add to the total
• In Carlsbad, Title 24 rules and local labor rates often push totals above U.S. averages

If I were comparing quotes, I’d look at more than the furnace model. I’d check for:

• Permit fees
• HERS testing
• Duct repairs
• Old unit removal
• Venting changes
• Thermostat compatibility
• Manual J sizing

A low quote may leave out code work. A high quote may include duct fixes, access issues, or a better furnace tier. That’s why itemized estimates matter.

How Much it Will Cost to Replace Your Furnace in 2026 | Quick Pricing Breakdown

sbb-itb-a7630c3

Quick comparison

Type	Common installed range	Main thing to know
Standard gas	$4,500–$7,500	Often works with existing venting
High-efficiency gas	$6,500–$10,900+	Needs new venting and drain setup
Electric	$1,500–$7,000	Lower install cost in some homes

Home size also shifts the total:

• Under 1,500 sq ft: often $4,000–$6,000
• 1,500–2,500 sq ft: often $6,500–$9,500
• Over 2,500 sq ft: often $10,000–$17,500+

One more thing: duct leakage can waste 20% to 30% of heated air. So a furnace quote that includes duct sealing may look higher at first, but it can fix comfort issues at the same time.

This guide breaks down what changes the total, what should be listed on the quote, and how to compare Carlsbad furnace estimates without guesswork.

2026 Furnace Installation Price Ranges in Carlsbad

In Carlsbad, 2026 installed furnace costs change mostly based on three things: the furnace type, the venting setup, and how much permit work the job needs. Some installs are pretty simple swap-outs. Others take more work, especially when venting has to be changed.

Standard Gas Furnace Installation

A standard 80% AFUE gas furnace is usually the lowest-cost gas choice because it can often use an existing B-vent flue. In Carlsbad, total installed cost usually falls between $4,500 and $7,500, with many common jobs landing around $5,400 to $6,000.

That price usually includes the furnace and labor. Labor often takes 4 to 8 hours, depending on access to the equipment and the layout of the space. Permit fees often add $150 to $400.

Higher-efficiency systems cost more, and the main reason is simple: the venting and drainage setup changes.

High-Efficiency Gas Furnace Installation

A 96%+ AFUE condensing furnace costs more because the furnace itself, the venting, and the condensate work all add to the job. These systems need new PVC venting and a condensate drainage line, which can add $400 to $1,200 in labor and materials.

In Carlsbad, installed costs for high-efficiency gas furnaces usually range from $6,500 to $10,900+. Most mid-range projects land between $7,500 and $9,000.

Electric Furnace Installation

Electric furnaces have the biggest spread in installed cost. On the low end, a basic install can come in around $1,500. Most Carlsbad jobs land in the $3,000 to $4,500 range, while more involved installs can reach $7,000.

They usually cost less to put in than gas furnaces, but they tend to make the most sense when gas service isn't available or doesn't fit the home well.

The table below makes the side-by-side comparison a lot easier.

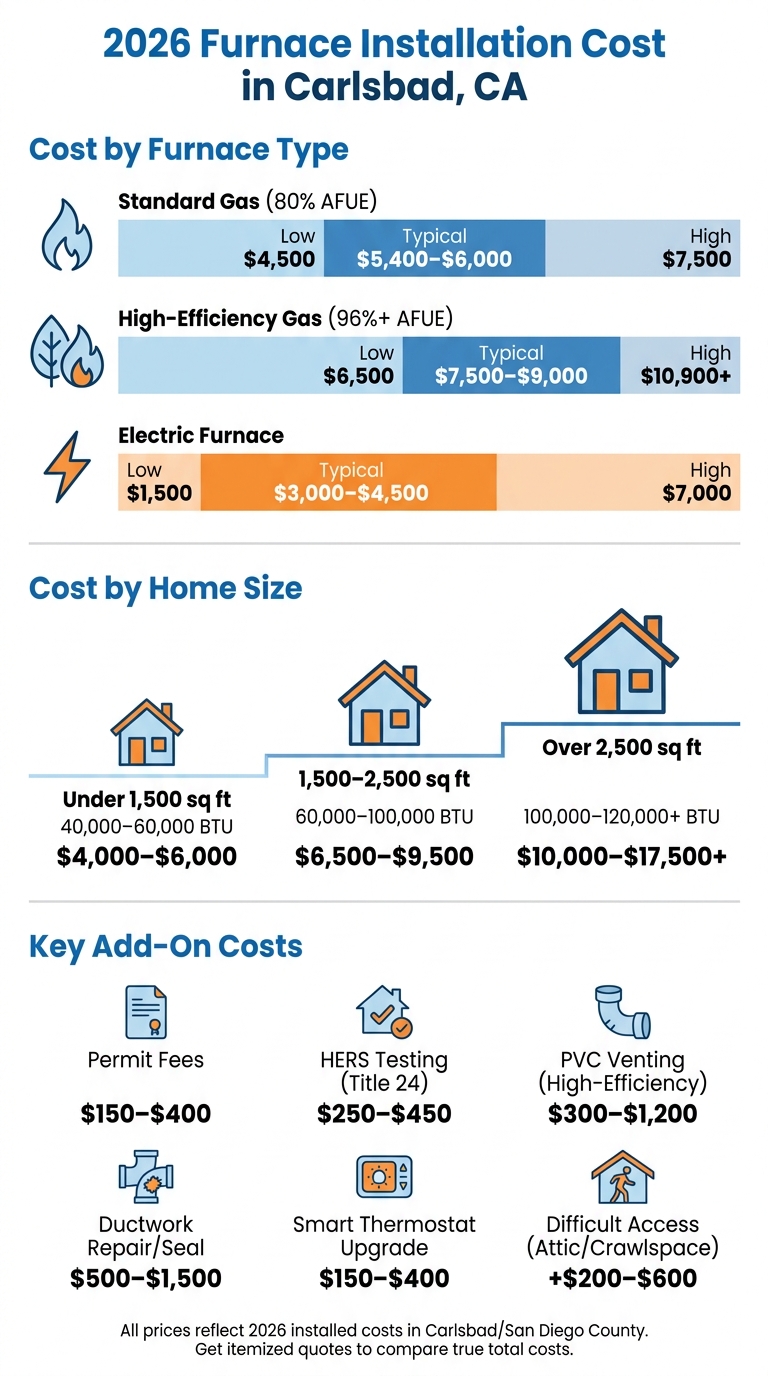

Furnace Type	Low	Typical	High
Standard Gas (80% AFUE)	$4,500	$5,400–$6,000	$7,500
High-Efficiency Gas (96%+ AFUE)	$6,500	$7,500–$9,000	$10,900+
Electric Furnace	$1,500	$3,000–$4,500	$7,000

All figures reflect 2026 installed costs in Carlsbad/San Diego County.

Main Factors That Affect Furnace Installation Costs

Furnace installs in Carlsbad almost never land at the exact same total. A simple swap is one thing. A job with tight access, duct fixes, permit work, or a different furnace setup is another. Installed cost usually goes up when the equipment size changes, code items show up, or the crew has a harder time getting to the unit.

Equipment Size, Furnace Type, and Efficiency Rating

Furnace capacity is measured in BTUs. Bigger homes need more output, and that usually means higher equipment cost. In Carlsbad, homes often need less heating capacity than homes in colder parts of the country. Even so, equipment cost can jump by $1,000 to $3,000+ if a home needs a larger furnace, or if poor insulation and high ceilings push the load higher.

Efficiency also moves the number fast. Going from an 80% AFUE furnace to a 96%+ model usually adds a 15% to 30% premium to the equipment price. And that jump isn't just about the furnace itself. High-efficiency units may need new venting and condensate drainage, which adds more to the install. Brand choice can also push cost up, with higher-tier equipment adding 15% to 25%.

One point that matters more than many homeowners think: ask for a Manual J load calculation. Don't let the contractor just copy the BTU size of the old furnace. An oversized unit can short-cycle, heat unevenly, and wear out faster.

Labor, Ductwork, Permits, and Old Unit Removal

Labor in San Diego County runs about $65 to $80 per hour. One of the biggest swing factors is access. If the furnace sits in a tight attic or crawlspace, the crew may need 2 to 4 hours more than they would for a simple garage install. That can add about $200 to $600 to the final bill.

Permits are also part of the job in Carlsbad. California furnace replacements must meet mechanical permit and Title 24 rules, including HERS testing for duct sealing and combustion safety. HERS testing adds $250 to $450. Skip that step, and it can create problems during a home sale. It may also void the manufacturer's warranty.

Ductwork is another area where costs can climb in a hurry. Small repairs or sealing often cost $500 to $1,500. But if HERS testing shows duct leakage above 15%, sealing becomes required under California Title 24 code. A full duct replacement can run $2,000 to $12,000+, depending on home size. Old unit removal is often included in the quote, but it's smart to check that before the work starts.

Cost Driver	Typical Cost Impact	When It Applies
Equipment Size (BTU)	+$1,000 – $3,000+	Larger homes or poor insulation/high ceilings
Efficiency Tier (80% → 96%+ AFUE)	+15% – 30% premium	Upgrading to a condensing unit
Venting Changes	+$300 – $1,500	Switching to high-efficiency (PVC venting)
Difficult Access	+$200 – $600	Attic or crawlspace locations
Ductwork Repair/Seal	+$500 – $1,500	Leaky ducts or mandatory Title 24 sealing
Permit + HERS Testing	+$300 – $850	Required for California furnace replacements
Brand Premium	+15% – 25%	Higher-tier vs. budget equipment

Thermostat and Control Upgrades

A thermostat upgrade is often part of a 2026 furnace replacement. If the current thermostat is non-programmable, California code requires a programmable or smart thermostat as part of the install. That usually adds $150 to $400 for the device and installation.

Variable-speed and multi-stage furnaces often need matching controls. In some cases, the system needs a compatible thermostat to run the way it should, which adds to the install total.

These details start to matter even more when home size and project scope get bigger.

How Home Size and Project Type Change the Total Cost

The furnace ranges above don't stay fixed for every home. Once you factor in home size and project scope, the total can move quite a bit.

Small, Mid-Size, and Large Homes

Home size is one of the biggest reasons totals land at the low end or high end of the ranges above. Smaller homes under 1,500 sq ft usually need a furnace in the 40,000–60,000 BTU range. Mid-size homes between 1,500 and 2,500 sq ft often need 60,000–100,000 BTUs. And homes over 2,500 sq ft may need 100,000 BTUs or more, which pushes up equipment costs and can add labor as well.

In Carlsbad, the mild climate often means sizing stays on the lower side. Even so, the final call should still come from a Manual J load calculation.

These figures are all-in totals, not furnace-only prices.

Home Size	Typical BTU Range	Typical All-In Cost
Under 1,500 sq ft	40,000 – 60,000	$4,000 – $6,000
1,500 – 2,500 sq ft	60,000 – 100,000	$6,500 – $9,500
Over 2,500 sq ft	100,000 – 120,000+	$10,000 – $17,500+

Like-for-Like Replacement vs. Projects With Ductwork Changes

A like-for-like replacement is the simplest setup: same furnace location, ducts that already match, and no venting changes. That's usually the least expensive path. A basic swap in a garage or equipment closet often runs $1,000 to $2,000 in labor and usually takes 4 to 8 hours.

The total climbs when the job involves more than the furnace. For example, moving from an 80% AFUE unit to a 96% high-efficiency model means new PVC venting and condensate drainage, which can add about $500 to $1,500.

Ductwork can change the math fast:

• Partial duct repairs or replacement can add $2,000 to $5,000
• A full duct system replacement can add $5,000 to $12,000+

Access matters too. If the unit sits in a tight attic or crawlspace, that can add 2 to 4 hours of labor.

Low-, Mid-, and High-Range Cost Examples

Here's what that can look like for a Carlsbad homeowner in 2026:

Scenario	Description	Estimated Total Cost
Low (Basic Swap)	80% AFUE unit, garage install, existing venting and ducts in good shape	$3,500 – $5,500
Mid (Efficiency Upgrade)	96% AFUE unit, new PVC venting, minor duct sealing, smart thermostat upgrade	$5,500 – $8,500
High (Complex Install)	Variable-capacity unit, attic access, ductwork repairs or replacement	$9,000 – $15,000+

The low range fits a small, easy-to-access system. The mid range is more in line with a common efficiency upgrade. The high range usually shows up with larger homes, hard-to-reach installs, or major duct work.

Leaky ducts can waste 20% to 30% of conditioned air. So if the ducts need work, handling that during installation can improve comfort and efficiency. Those differences in scope should show up plainly in the written quote.

What a Furnace Installation Quote Should Include

Line Items Normally Included in a Quote

Once you get past the broad price ranges, the next step is simple: look at the quote line by line.

A proper Carlsbad furnace quote should spell out every cost. It shouldn't just show one lump-sum number. Equipment usually accounts for 55% to 60% of the total installed price, so the quote should list the exact furnace details, including the make, model number, BTU rating, and AFUE efficiency rating.

The base quote will usually also show:

• Installation labor
• Basic materials like gas piping, flue pipe, and condensate drain
• Removal and disposal of your old furnace

In California, many quotes also show HERS testing and Title 24 compliance work. HERS testing checks duct leakage and combustion safety, and it's required for most replacement jobs under Title 24. It usually adds $250 to $450 to the project.

You should also look for combustion testing at startup to confirm safe carbon monoxide levels, plus manufacturer warranty registration. That registration often needs to be filed within 60 days of installation. If it's missing from the quote, ask about it before the job starts.

Items That Are Often Priced Separately

This is where budgets can shift fast. The base install may look fine at first glance, but extra work can change the total in a hurry.

Common items billed separately include:

• Permit fees: usually $150 to $400 in the Carlsbad and San Diego area - check that the permit is filed with the city before final payment
• HERS testing (Title 24): $250 to $450
• PVC venting reconfiguration when moving to 96%+ AFUE: $300 to $1,200
• Gas line resizing: $300 to $1,200
• Smart thermostat upgrade: $150 to $400
• Ductwork repair or replacement: $500 to $1,500 for partial repairs; $2,000 to $12,000+ for full replacement

Cost Item	Usually in Base Quote	Often Priced Separately
Furnace unit (model, BTU, AFUE)	✓
Installation labor	✓
Basic gas/flue materials	✓
Old unit removal and disposal	✓
Permit fees	Sometimes	✓
HERS testing (Title 24)	Sometimes	✓
Combustion testing at startup	Sometimes	✓
PVC venting reconfiguration		✓
Gas line resizing		✓
Smart thermostat upgrade		✓
Ductwork repair or replacement		✓

Conclusion: Planning Your 2026 Furnace Installation Budget in Carlsbad

Once you know what belongs on the quote, the budget gets a lot easier to read. A simple like-for-like replacement in an easy-to-reach spot will usually cost less than a job with duct repairs, high-efficiency venting, or tight access.

That's why an itemized quote matters so much. It lets you compare the furnace itself, labor, permit work, and add-on charges side by side before you approve the install. A fully itemized quote is the fastest way to compare the true installed cost.

FAQs

How much should I budget for my home?

In Carlsbad in 2026, plan on $4,500–$10,500 for a standard gas furnace replacement.

Here’s the usual range:

• 80% AFUE furnaces: $4,500–$7,500
• 96% AFUE furnaces: $6,500–$10,500

Why the spread? A few things can push the total up or down. The big ones are your home’s size, the furnace’s output, and how tough the install is. For example, costs can climb if the job needs ductwork repairs, gas line resizing, or work in a cramped attic or crawlspace.

Permits usually add $150–$350.

When you compare quotes, don’t just look at the bottom-line number. Make sure the estimate includes old unit removal, labor, and a load calculation. That helps you compare apples to apples and avoid missing line items later.

What makes one furnace quote higher than another?

A furnace quote depends on a lot more than the furnace itself. The equipment matters, of course, but so do the type of unit, its efficiency rating, your home's size, any ductwork changes, and how hard the install will be.

Then there’s the work around the furnace that can add to the total. Things like venting updates, gas line work, electrical panel changes, permits, Title 24 testing, and tight install spots - like attics or crawlspaces - can all push the quote higher.

Do I need permits and HERS testing in Carlsbad?

Yes. In Carlsbad, you need a mechanical permit for a furnace replacement, a new furnace install, or ductwork changes to meet city and California code rules.

You may also need HERS testing under California Title 24. This often applies to duct leakage when you add new ducts or replace more than 40% of the current system. HERS fees usually range from $200 to $400 and are often billed separately.
